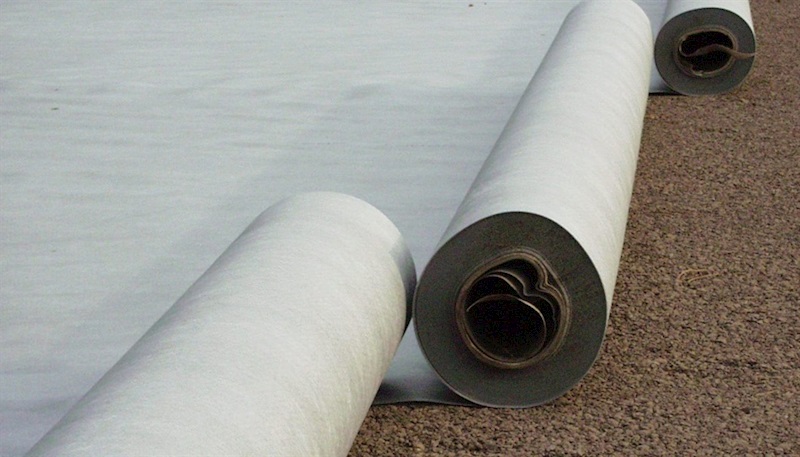

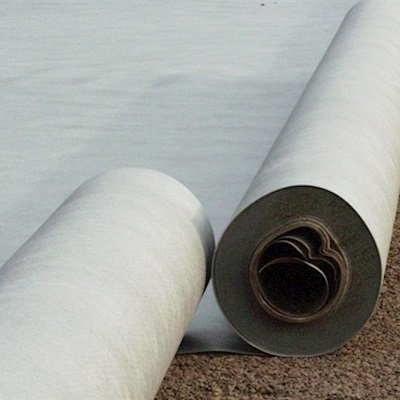

GEOTEXTILE FELT APPLICATION FIELDS



IZP-PP is a polypropylene , staple fiber , needle punched nonwoven geotextile.It is used for separating the water and heat insulation layers from each other; draining the surplus water; protecting the insulation; preventing blockage in the draining tubes;

To prevent the collapses in roads and railways; In draining systems;

Under the geomembranes;

To prevent scouring problems; in reinforced filling; in preventing erosion; in coastal protection areas such as river, lake and seaside;

In filtration, weak ground reinforcement; asphalt reinforcement;

In paved and unpaved roads, airstrips, and as drainage mattress under the road fillings; In highways, tubes and underground facilities;

In subways, agricultural lands, garden terraces and courts; and In solid waste storage landfill and in irrigating channels.





ADVANTAGES OF GEOTEXTILE FELT



Due to the heat treatment, the geotextile felt with the same weight shows more strength and less extension; It requires less storage area;

It easily transported and laid;

It is resistant against acid, alkali and microorganisms; It is resistant against Ultra violet rays;

The permeability of the geotextile in terms of both perpendicular to the surface and horizontal to the surface is high.



























PROPERTIES

STANDARD

BİRİM

100

150

200

250

300

350

400

450

500

WEIGHT

TS EN ISO 9864

g/m2

100

150

200

250

300

350

400

450

500

TENSILE STRENGTH (MD) (MD)

TS EN ISO 10319

kN/m

7

12

17

21

25

27

28

30

36

TENSILE STRENGTH (MD) (CD)

7

12

17

21

25

27

28

26

36

ELONGATION AT BREAK  (MD)

TS EN ISO 10319

%

40

40

50

50

50

50

50

60

60

ELONGATION AT BREAK  (CD)

TS EN ISO 10319

%

50

50

60

60

60

60

60

60

60

STATIC PUNCTURE (CBR)

TS EN ISO 12236

N

1100

1800

2700

3300

3800

4200

4700

5200

5800

DYNAMIC CONE DROP

TS EN ISO 13433

mm

35

27

25

21

16

13

9

4

3

PERMEBALİTE.

(Water Flow at 50 mm WH)

TS EN ISO 11058

m/sn

0,09

0,06

0,05

0,04

0,03

0,044

0,036

0,030

0,026

PORE SIZE ,090 %

TS EN ISO 12956

micron

88

83

78

75

70

65

61

55

50

WIDTH



m



1-6

1-6

1-6

1-6

1-6

1-6

1-6

1-6

Tolerance +_%5
