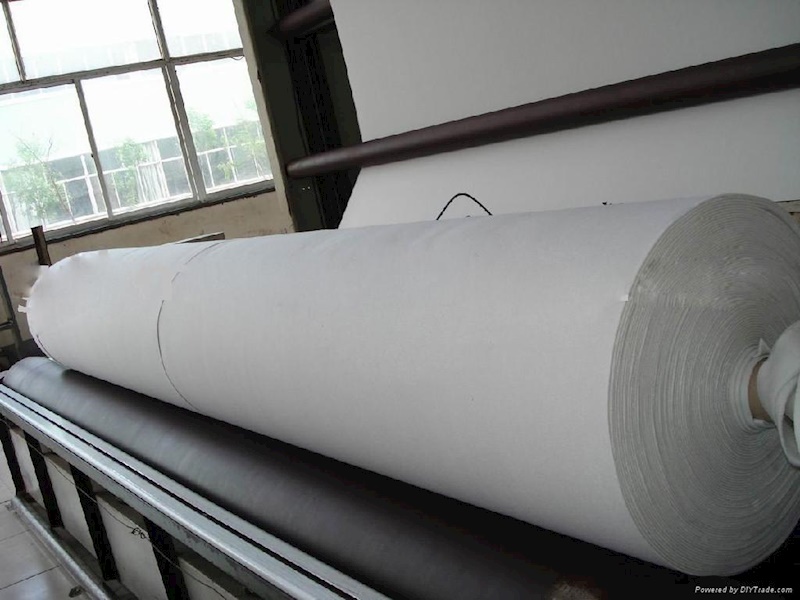

İZP 03 - POLYESTER WHITE GEOTEXTILE ORIGINAL







NONWOVEN BLACK  PES ORGN GEOTEXTİLES TECHNICAL DATA SHEETS



























Nonwoven geotextile made of polyester, needle-punched and calandered, produced to provide the following properties. Geotextile white  acts as a sand

filter by allowing water to move through the soil while retaining all upstream soil particles.  Geotextile White, acts as anti-puncturing protection and preventing local damage on exposed waterproofing membranes.



SCOPE OF USE  :  Roads  -  Railways  - Retaining wall  -  Drainage system  -  Erosion control system  Basins and dams - Canals – Tunnels …..















WEIGHT

TS EN ISO 9864

g/m2

100

150

200

250

300

350

400

500

600

PROPERTIES





100

150

200

250

300

350

400

450

500

*THICKNESS (Thickness at 2 kPa)

TS EN ISO 9863-1

mm

0,8

1,2

1,4

1,5

1,6

1,8

2,1

2,7

3,5

TENSILE STRENGTH (MD)

TS EN ISO 10319

kN/m

4

5

8

9

12

13

16

20

24

TENSILE STRENGTH (CD)

6

7

10

11

14

15

18

23

27

ELONGATION AT BREAK  (MD)

TS EN ISO 10319



20

25

30

32

35

60

47

60

70

ELONGATION AT BREAK (CD)





20

25

30

32

35

60

47

60

70

STATIC PUNCTURE (CBR)

TS EN ISO 12236

N

600

1100

1300

1600

1900

2200

2700

3600

4200

DYNAMIC CONE DROP

TS EN ISO 13433

mm

42

40

38

36

32

27

16

10

3,4

PERMEBALİTE.

(Water Flow at 50 mm WH)

TS EN ISO 11058

I/sec/m2

0,10

0,08

0,06

0,06

0,038

0,037

0,036

0,034

0,032

PORE SIZE ,090 %

TS EN ISO 12956

micron

1,00

0,98

0,95

0,90

0,85

0,82

0,81

0,78

0,72

WIDTH



m.

1-6

1-6

1-6

1-6

1-6

1-6

1-6

1-6

1-6

TOLERANCE: % 5+-

*NOTE: THESE ARE NOT CONSIDERED AS THICKNESS FOR HEAT-TREATMENT PRODUCTS.
